Case

AVK Rewag preferred supplier of repair clamps in many areas of Romania

In Romania a connection to a new raw water line has been equipped with a flanged outlet repair clamp (FST) produced by AVK Rewag. A solution that is now recommended for similar projects.

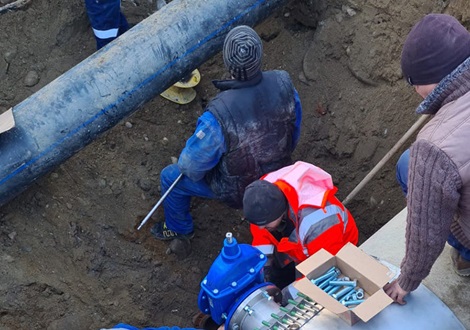

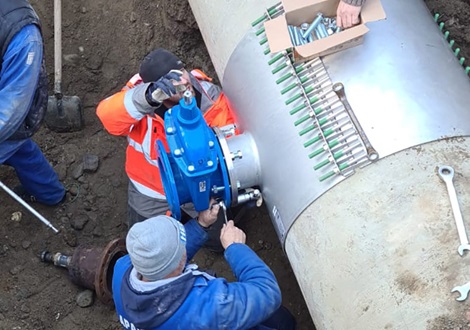

To supply the lake and the fountain located in Zavoi Park, it was decided to have a new raw water line, instead of using a drinking water supply . The branched solution for an asbestos cement pipe (DN800) to a PE pipe (DN200) includes an AVK repair clamp with a flanged outlet (series 748, type FST DN200 ) as well as an AVK gate valve (series 06/30, DN200), both delivered by our Romanian partner Vestra Industry.

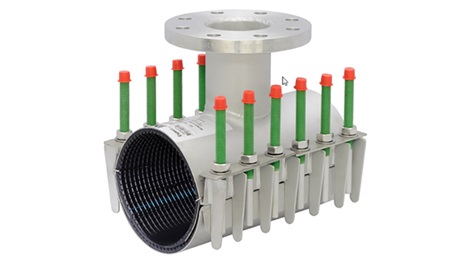

The contractor Vilforest decision to choose a solution from AVK Rewag was based on previous positive experiences with our products. The triple band repair clamp with flanged branch outlet, type FST is a high-quality solution to add a flanged connection to a pipe. The repair clamps are provided with a waffle structured rubber gasket with rounded tops to create a fully circumferential seal. The stainless steel repair clamps are passivated to ensure an optimum corrosion resistance.

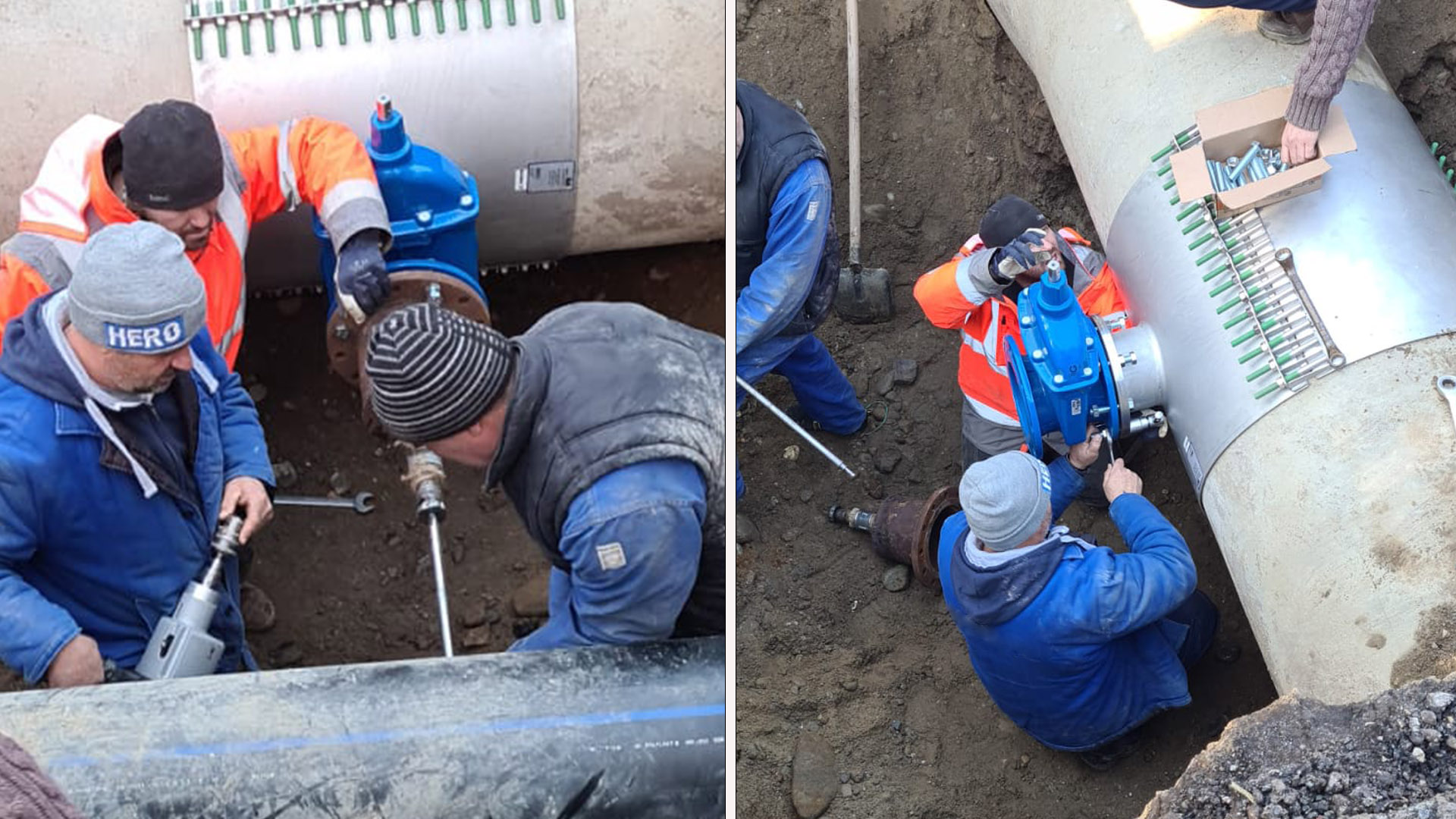

After the products were mounted and tested, the client was very pleased with the solution. In the past they had experiences with similar products from other suppliers, where the repair clamps with outlets did not assure a 100% tightness after mounting. So, they had their doubts, but after installation, the solution from AVK Rewag was approved and recommended for other future projects.

AVK Rewag is able to produce any non-standard repair clamp . We can support you by designing and producing all kind of solutions.

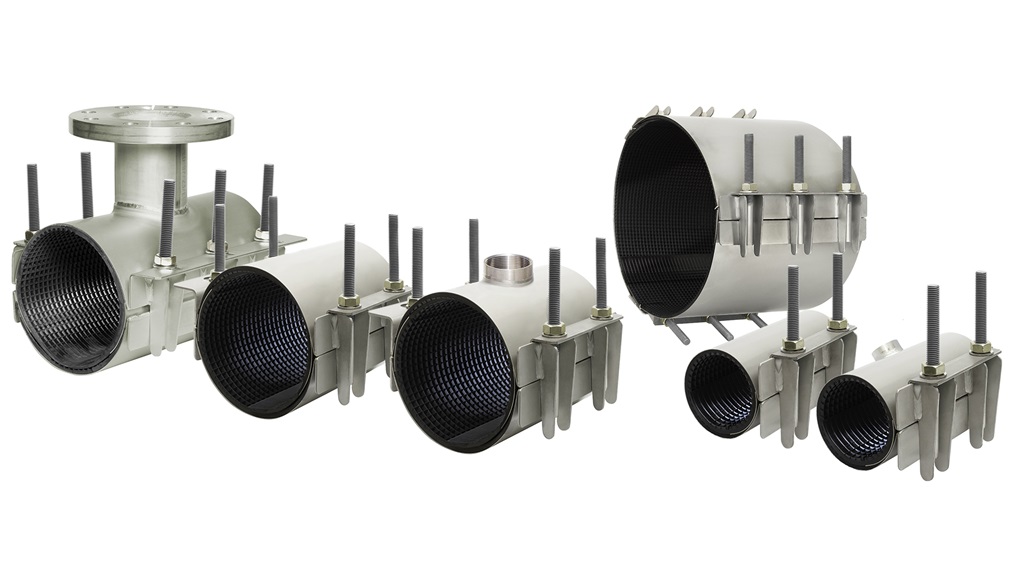

High-quality AVK Repair Clamps

• Completely made of stainless steel, no corrosion.
• Clamps available in different lengths and diameters.
• Clamp is fully pickled and passivated to restore corrosion
resistance.
• Extremely lightweight, therefore easy to handle.
• Easy mounting with handle on stainless steel repair clamp
• No sharp corners or edges
• The rubber sealing is water and gas resistant.
• No loose parts that can get lost during assembly
• No problem with slightly oval pipes Clamp takes the shape
of the pipe.
• Studs are Teflon coated to prevent cold welding (galling)
• Available with threaded branches from ½ "to 4".
• Available with flanged branches from DN 50 up to DN 500

More information about the repair clamps

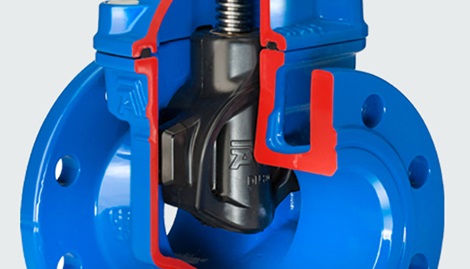

Advantages AVK gate valves

• The fixed and integrated wedge nut prevents corrosion
• Wedge shoes fully vulcanised to the wedge core that
ensures easy operation
• Large stem hole in the wedge prevents stagnant water
• Wedge stop protects seals and coating
• Rolled threads increase the stem’s durability
• Triple safety stem sealing
• Thrust collar provides fixation of the stem and low torques
• The bonnet gasket is fixed in a recess in the bonnet and
encircles the bonnet bolts to prevent blow-out
• Full bore ensures low head loss and enables use of pipe
cleaning devices
• Low operating torques ensure easy operation
• Epoxy coating in compliance with DIN 3476 part 1, EN 14901 and GSK

How to choose the right gate valve

Video

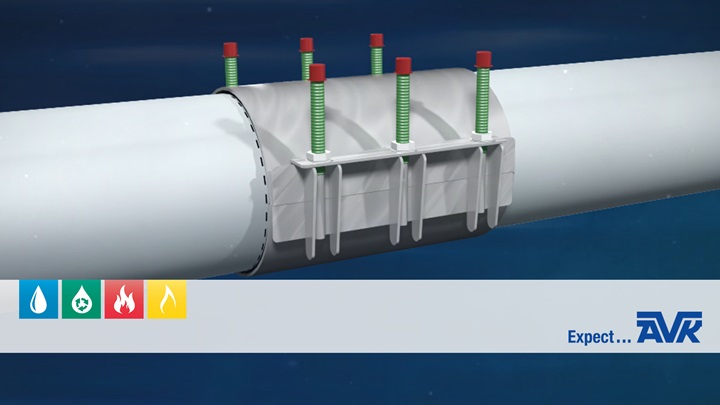

Double band repair clamp

How to install a double band repair clamp series 748

AVK Youtube channel

Video

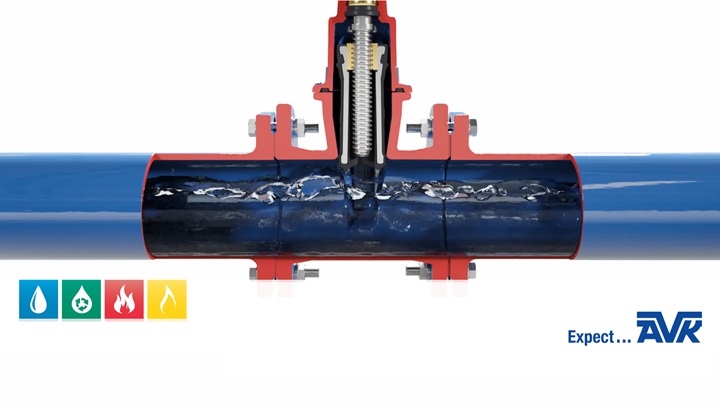

Gate valves

Animation about features and variants of our gate valves for water supply, gas supply, wastewater treatment, fire production and industry.

AVK Youtube channel
