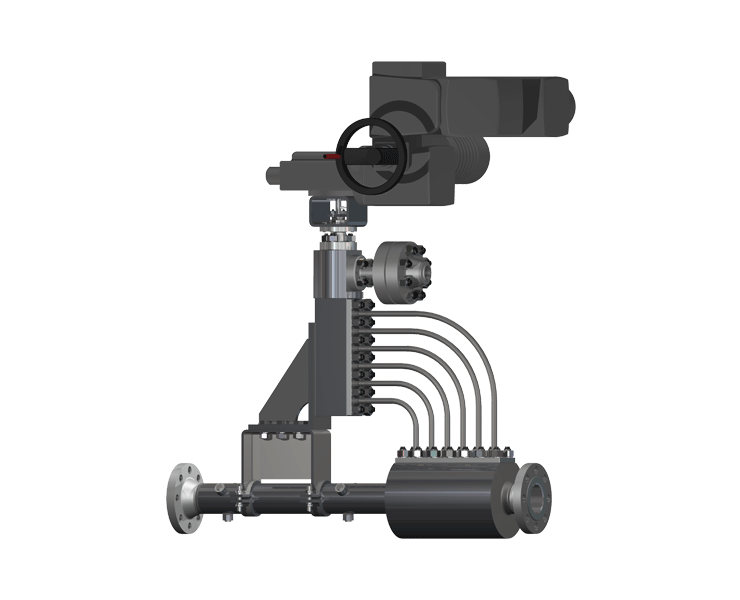

Desuperheater TECtemp HTV venturi type
Our patented desuperheater TECtemp HTV venturi type is suitable for applications at temperatures up to 750°C for small pipeline nominal diameters due to non-moving parts in the steam flow. The three-part design enables the operation of the control unit with drive out of the high temperature affected range. The functional principle is based on the proven TECtemp desuperheater. The compact control unit can be removed easily and can be serviced individually for servicing work. This desuperheater is used as a compact solution for small pipelines with a high number of nozzles and small pressure loss requirements.
CHARACTERISTICS
- Precise regulation of the injection water amounts
- No moving parts in the steam flow
- Easy to maintain thanks to easy access to the control section with drive
- Linear characteristic curve, even percentage or customer-specific
- Thermal separation by water feed at 0 m³/h injection to the mechanical moving and electrical parts
- Thermal expansions between the individual components are absorbed using feed pipelines
- Very high operational reliability
