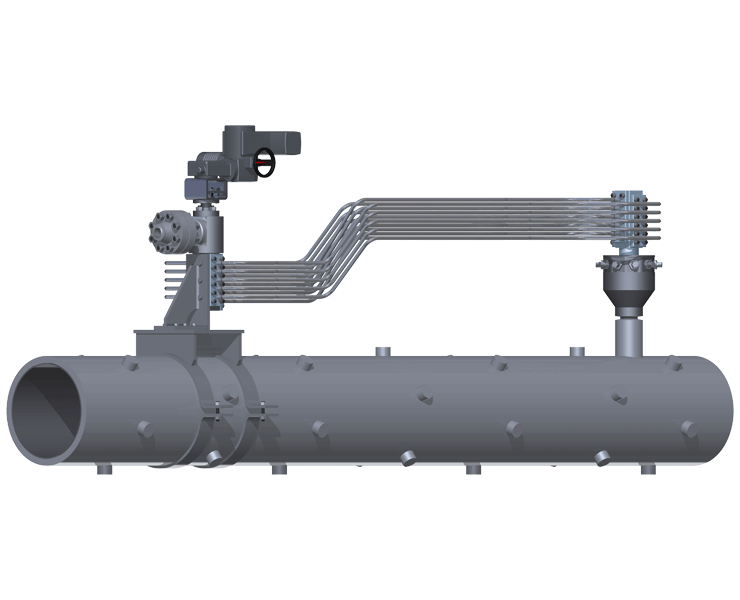

Desuperheater TECtemp HTL lance type
Our patented desuperheater TECtemp HTL lance type is suitable for applications at temperatures up to 750°C due to non-moving parts in the steam flow. The three-part design enables the operation of the control unit with drive out of the high temperature affected zone. The reduced weight of the steam lance has a positive effect on the support load of the steam line. The functional principle is based on the proven TECtemp desuperheater. The compact control unit can be removed easily and can be serviced individually for servicing work.
CHARACTERISTICS
- Precise regulation of injection water amounts
- No moving parts in the steam flow
- Easy to maintain thanks to easy access to the control section with drive
- Linear characteristic curve, even percentage or customer-specific
- Thermal separation by water feed at 0 m³/h injection to the mechanical moving and electrical parts
- Thermal expansions between the individual components are absorbed using feed pipelines
- Significantly reduced weight of the injection lance
- Reduction of system vibrations
- Very high operational reliability
