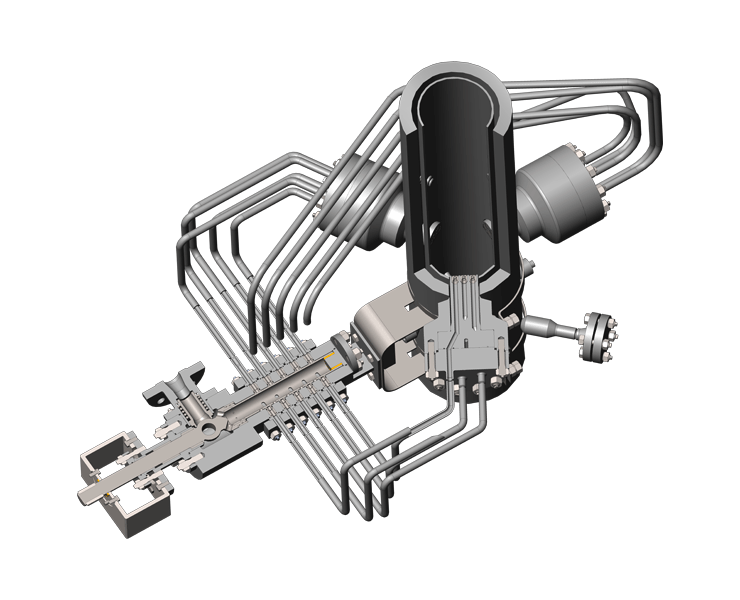

Desuperheater TECtemp HTR ring type

Our patented desuperheater TECtemp HTR ring type is designed with a three-part structure without moving parts and without weld seams in the steam lances. These are arranged in a ring shape depending on the steam pipe nominal diameter. For example, 40 individually controlled nozzles can be used in this way. Homogeneous distribution of the injection water enables short evaporation distances and precise control of minimal loads. The installed steam lances provide significantly low permanent pressure loss and therefore contribute to higher plant efficiency.

CHARACTERISTICS

  • Precise regulation of larger injection water amounts up to 80t/h
  • No moving parts in the steam flow
  • Easy to maintain thanks to easy access to the control section with actuator
  • Linear characteristic curve, even percentage or customer-specific
  • Thermal separation by water feed at 0 m³/h injection to the mechanical moving and electrical parts
  • Thermal expansions between the individual components are absorbed using feed pipelines
  • Significantly reduced weight of the injection lance
  • Reduction of system vibrations
  • Very high operational reliability
  • High fatigue stress resistance by optimal design and Inconel lances and nozzles
