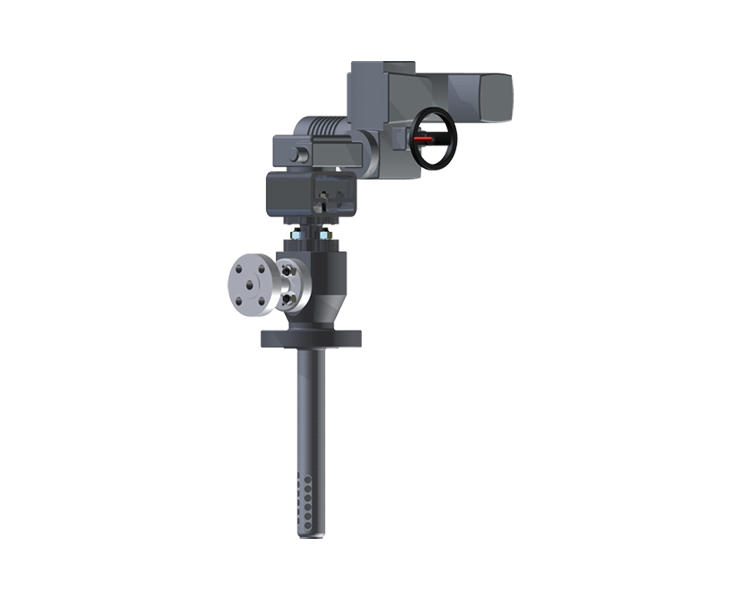

Desuperheater TECtemp

Our desuperheater enable accurate control of injection water amounts for the hot steam cooling. The special nozzle design and individual actuation uses a 90° rotary movement and ensures constant microfine atomization of the injectied water. The long-lasting tight shut-off is performed by an integrated ball / seat ring system outside the high thermally loaded zone. High differential pressures between injection water and process steam, e.g. 100 bar are realized using multi-stage pressure reduction. The surface treatment and the use of coating materials with a high resistance to wear is increasing the life cycles significantly.

CHARACTERISTICS

  • Micro fine atomization
  • Very precise control characteristics Kv min 0.01 m³/n
  • Linear characteristic curve, even percentage or customer-specific
  • Leak-tight valve seat outside the high thermally loaded zone
  • Variable connectivity
  • Low pressure loss at small differential pressures
  • Easy nozzle change
  • Forged body design without weld seams
  • The one-piece-body design reduces the risk of broken or lost nozzle heads down to zero
  • Long service lives due to use of state-of-the-art hardening technologies

Click to download Product sheet, datasheet 235/1-001 & 235/2-001
