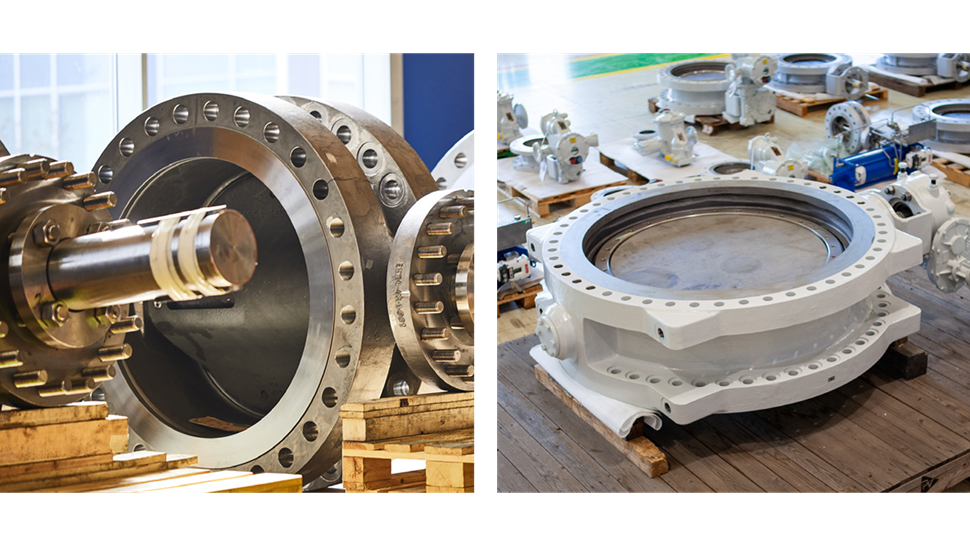

Triple Eccentric Butterfly valves AJ & TJ Series
Metal-to-metal shut off for demanding applications
The AJ and TJ Series are metal-seated triple eccentric butterfly valves designed for tight shut-off in high-pressure and extreme temperature services. The valve geometry eliminates seat rubbing during operation, significantly reducing wear and ensuring consistent performance over the full-service life.
The AJ and TJ Series Triple Eccentric Butterfly Valves represent a proven solution for applications requiring tight shut-off, extreme temperature resistance, and minimal operating torque. Their advanced triple offset design ensures friction-free operation and reliable sealing under extreme service conditions.
The valves are ideal for a wide variety of industrial processes and applications, including Oil & Gas, LNG, and petrochemical - both onshore and offshore – as well as chemical and power generation plants.
Designed for demanding service conditions, they can be applied in isolation, on/off and control service, as well as in high-cycling, quick-acting, and safety critical functions such as Emergency Shutdown (ESD) and High Integrity Pressure Protection Systems (HIPPS).The robust triple offset design ensures reliable, tight shut-off performance across a broad temperature range–from low and cryogenic service to high-temperature applications–while maintaining low operating torque.
They are available in pressure ratings up to ASME Class 1500 (PN250), making them a reliable solution for critical and severe process conditions.
Triple Eccentric Butterfly Valve AJ
The Triple Eccentric Butterfly Valve AJ Series 985, a valve designed for high-pressure and temperature applications.
AJ series offers:
- Broad size range (DN80–DN2800)
- Multiple body types and material options
- Primary and Cryogenic versions available
- International approvals and certifications
- Compatible with all common actuators
Triple Eccentric Butterfly Valve TJ
The TJ Series 986, a specialized valve derived from the AJ Series, engineered to make maintenance faster, safer, and more efficient.
TJ series 986 offers:
- Broad size range (DN150–DN2400)
- Cryogenic version, using the same proven cryogenic trim materials and sealing design as the AJ Series
- Buttwelded and Flanged ends
- International approvals and certifications
- Compatible with all common actuators
