AVK GATE VALVE, FLANGED, PN10/16

Post indicator flange, wrench nut, alu-bronze stem, brass wedge nut, A4 bonnet bolts, FM-approved, CTC, red

Industrial Netherlands building

Contact

AVK Industrial Nederland BV

Schorsweg 1 8171 ME Vaassen Netherlands

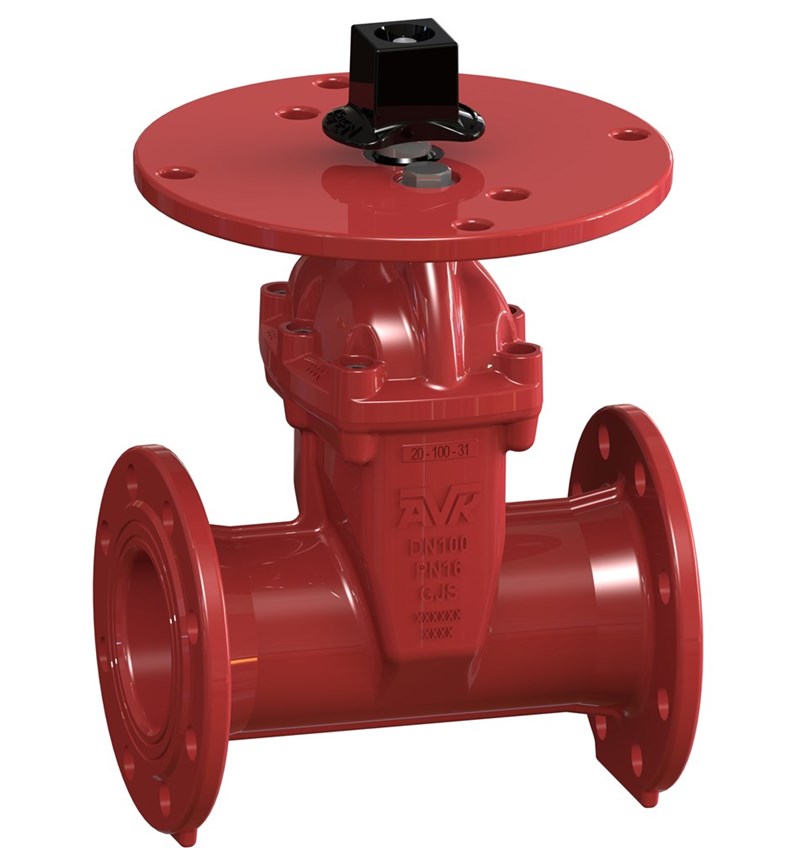

Flanged gate valve prepared for post indicator, for fire water applications

AVK series 45/AD gate valves are designed to US-standards, but with European flanges and face-to-face values. Valve body, bonnet and wedge core are made of ductile iron which ensures high strength and reliability. Corrosion protection is excellent with all iron parts coated with fusion bonded epoxy, fasteners in stainless steel and stem in high strength alu-bronze.

fire
fire
Variant 45/AD-003
Connection: Flanged
Material: Ductile iron
DN: DN80 - DN400
PN: PN 16
Closing direction: Clockwise to Close

Features

  • Fixed, integral wedge nut prevents vibrations in the wedge
  • Ductile iron wedge core fully encapsulated in EPDM rubber; no iron parts exposed to the water and the vulcanization prevents creeping corrosion underneath the rubber
  • Guide rails on the body and shoes on the wedge ensure uniform closure and easy operation
  • A large conical stem hole in the wedge ensures circulation and prevents stagnant water from accumulating
  • Stem of high strength alu-bronze C63020
  • Stem seal with an outer wiper ring, two upper O-rings in the radial bearing and one lower O-ring as the main stem seal to the water
  • Round bonnet gasket fixed in a recess to reduce risk of blow-out
  • Bonnet bolts in A4 stainless steel, counterbored, sealed with hot-melt and encircled by the bonnet gasket
  • Full bore and clear way
  • Brass thrust bearing for low operating torque
  • Fusion bonded epoxy coating to DIN 3476, red RAL 3000

Downloads

Datasheet
Appendix
Certificate(s)

Reference nos. and dimensions:

Scroll for more info
AVK ref. no. DN
mm		 L
mm		 H
mm		 W1
mm		 W2
mm		 Theoretical
weight/kg
45-080-AD-01614120 80 280 313 305 200 30
45-100-AD-01614120 100 300 342 305 220 30
45-150-AD-01614120 150 350 344 305 285 50
45-200-AD-00614120 200 400 544 305 340 90
45-200-AD-01614120 200 400 544 305 340 90
45-250-AD-00614120 250 450 626 305 400 135
45-250-AD-01614120 250 450 626 305 400 135
45-300-AD-01614120 300 500 698 305 455 180
45-350-AD-00614120 350 550 870 305 520 220
45-350-AD-01614120 350 550 870 305 520 220
45-400-AD-01614120 400 600 888 305 580 300
Enquiry
Scroll for more info

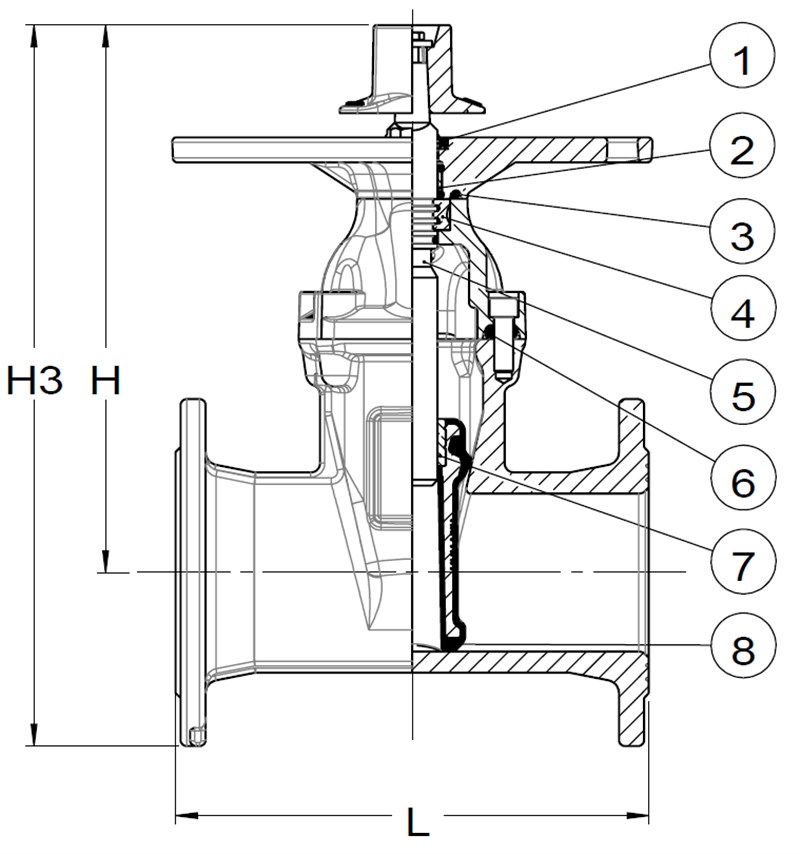

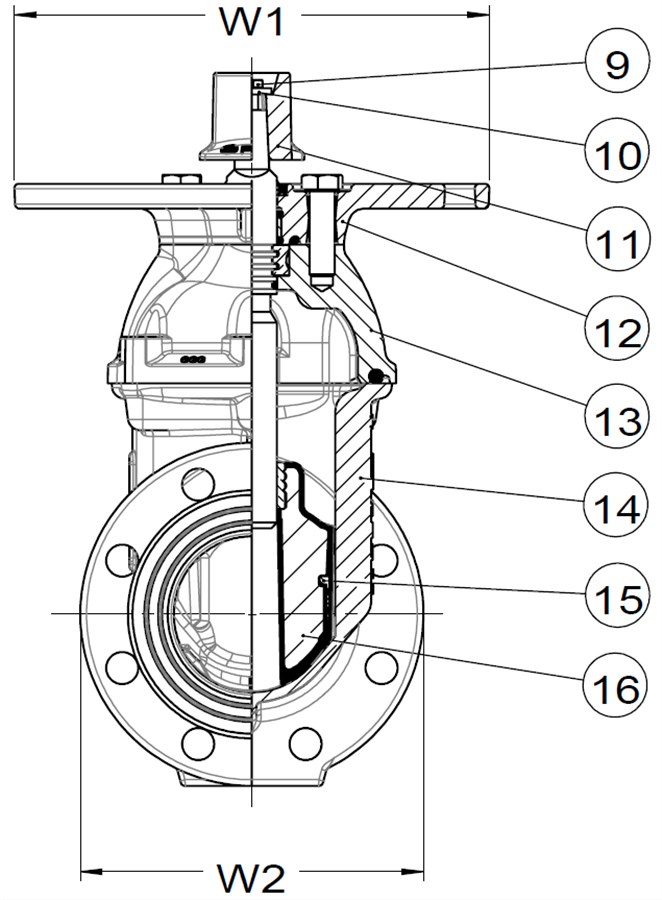

Components

1. Wiper ring NBR rubber
2. Bushing Polyamide
3. O-ring NBR rubber
4. Thrust collar Brass DZR CW602N
5. Stem Alu/Ni-bronze C63020
6. Bonnet gasket NBR rubber
7. Wedge nut Brass DZR CW602N
8. Wedge rubber EPDM rubber
9. Bolt Stainless steel A4
10. Washer Stainless steel A4
11. Wrench nut Cast iron GJL-250 (GG-25)
12. Post indicator plate Ductile iron GJS-500-7 (GGG-50)
13. Bonnet Ductile iron GJS-500-7 (GGG-50)
14. Body Ductile iron GJS-500-7 (GGG-50)
15. Wedge shoe Polyamide
16. Wedge core Ductile iron GJS-500-7 (GGG-50)

Test/Approvals

  • Seat: 1.5 x PN (in Bar). Body: 2 x PN (in Bar). Closing torque test.
  • UL listed/FM approved

Standards

  • EN 1074 (DIN 3352)
  • Face-to-face dimension according to EN 558, Series 15
  • Flange drilling to EN1092, PN10/16
