AVK Repico® - Slip Grip type coupling (SG)

Tensile / axial restraint - Non-tensile, for all metal pipes, stainless steel 316L, EPDM

Industrial Netherlands building

Contact

AVK Industrial Nederland BV

Schorsweg 1 8171 ME Vaassen Netherlands

Repico® SG - Slip Grip type coupling (tensile / axial restraint - non-tensile) to connect all metal pipes. For water and neutral liquids - 30° C up to +110° C

AVK's Repico® product program consists of stainless steel pipe couplings and repair couplings for pipe diameters from DN15-2000. The Repico® range offers a quick and simple connection solution for all pipes with possibility of angular deflection and easy handling due to the compact and light weight design.

fire
fire
Variant 745/52-111
Material: Stainless steel
DN: DN15 - DN300

Features

  •  Slip Grip type coupling provides a tensile / axial restraint  and a non-tensile connection for all metal pipes, allows pipe section replacement and is available in DN15-300
  • Couplings < DN50 with spot welding and from DN50 seam welding
  • Easy installation by use of a torque wrench, limited space required for installation due to compact design
  • Pressure range up to 42,7 bar (620 PSI) depending on size
  • Progressive sealing and anchoring
  • Max. angular deflection 5° for DN15-50, 4° for DN65-175 and 2° for DN200 and larger
  • Main components of stainless steel 316L
  • Green PTFE coated bolts
  • Light weight, appr. 30% in comparison with flanged connections
  • Dampens water hammer, vibrations and structure-borne noise
  • On request also available as long version; please contact our sales department

Downloads

Datasheets
Certificate(s)
Installation
Product Brochure
Video

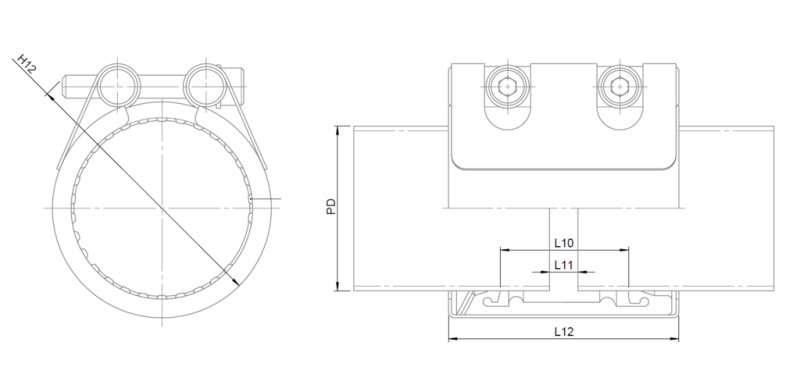

Reference nos. and dimensions:

Scroll for more info
AVK ref. no. Tolerance
mm
PD
mm
WP
bar
Work press.
Marine, bar 1)
D
mm
H12
mm
L10
mm
L11
mm
L12
mm
Bolts
(Metric)
Torque
Nm
Theoretical
weight/kg
Notes
745-52-0020-11107 19,5 - 20,5 20,0 42.7 16 29 48 28 8 60 2XM6X45 7 0.2 Work press.(bar): Working pressure for industrial and bases applications: minimum burst pressure is 1,5 x PN. Work press. Marine (bar): Working Pressure for marine application: minimum burst pressure is 4 x PN
745-52-0021-11107 21,2 - 22,2 21,3 42.7 16 31 49 28 8 60 2XM6X45 7 0.2 Work press.(bar): Working pressure for industrial and bases applications: minimum burst pressure is 1,5 x PN. Work press. Marine (bar): Working Pressure for marine application: minimum burst pressure is 4 x PN
745-52-0025-11107 24,5 - 25,5 25,0 42.7 16 38 57 28 8 60 2XM8X45 8 0.3
745-52-0027-11107 26,7 - 27,7 26,7 42.7 16 40 58 28 8 60 2XM8X45 8 0.3
745-52-0028-11107 27,5 - 29,0 28,2 42.7 16 42 62 28 8 60 2XM8X50 8 0.3
745-52-0030-11107 29,5 - 30,5 30,0 42.7 16 43 64 28 8 60 2XM8X50 8 0.3
745-52-0032-11107 31,5 - 32,5 32,0 42.7 16 45 66 28 8 60 2XM8X50 8 0.4
745-52-0034-11107 33,0 - 34,6 33,4 42.7 16 47 68 28 8 60 2XM8X50 8 0.4
745-52-0038-11107 37,5 - 38,5 38,0 42.7 16 51 75 28 8 60 2XM8X55 10 0.4
745-52-0040-11107 39,5 - 41,5 40,0 42.7 16 53 77 28 8 60 2XM8X55 10 0.4
745-52-0042-11107 41,9 - 43,0 42,2 42.7 16 56 79 28 8 60 2XM8X55 10 0.4
745-52-0044-11107 44,0 - 45,0 44,5 42.7 16 58 81 28 8 60 2XM8X55 10 0.4
745-52-0048-11107 47,8 - 49,0 48,3 42.7 16 62 85 28 8 60 2XM8X55 10 0.4
745-52-0050-11107 49,5 - 51,5 50,8 42.7 16 64 88 28 8 60 2XM8X55 10 0.4
745-52-0054-11107 53,4 - 54,6 54,0 42.7 16 70 92 44 8 80 2XM8X55 15 0.6
745-52-0057-11107 56,4 - 57,6 57,0 42.7 16 73 95 44 8 80 2XM8X55 15 0.6
745-52-0060-11107 59,0 - 61,5 60,3 42.7 16 76 98 44 8 80 2XM8X55 15 0.7
745-52-0063-11107 62,4 - 63,6 63,0 42.7 16 79 101 44 8 80 2XM8X55 15 0.7
745-52-0066-11107 65,2 - 67,3 66,7 37.3 14 83 105 44 8 80 2XM8X55 15 0.7
745-52-0069-11107 68,0 - 70,1 69,0 37.3 14 85 107 44 8 80 2XM8X55 15 0.7
745-52-0073-11107 71,5 - 74,1 73,0 37.3 14 89 111 44 8 80 2XM8X55 15 0.7
745-52-0076-11107 75,0 - 77,2 76,1 37.3 14 92 114 44 8 80 2XM8X55 15 0.7
745-52-0079-11107 78,8 - 80,8 79,9 37.3 14 100 128 59 15 110 2XM12X70 20 1.3
745-52-0084-11107 83,0 - 84,9 84,0 37.3 14 104 132 59 15 110 2XM12X70 20 1.4
745-52-0089-11107 87,8 - 91,0 88,9 37.3 14 109 137 59 15 110 2XM12X70 20 1.4
745-52-0101-11107 100,4 - 102,0 101,6 37.3 14 122 150 59 15 110 2XM12X70 20 1.5
745-52-0104-11107 103,0 - 104,0 104,0 37.3 14 124 152 59 15 110 2XM12X70 20 1.5
745-52-0106-11107 105,0 - 107,0 106,3 37.3 14 126 154 59 15 110 2XM12X70 20 1.5
745-52-0108-11107 106,5 - 108,0 108,0 37.3 14 128 156 59 15 110 2XM12X70 20 1.5
745-52-0114-11107 113,2 - 115,0 114,3 37.3 14 134 162 59 15 110 2XM12X70 20 1.6
745-52-0127-11107 125,6 - 128,0 127,0 37.3 14 149 181 59 15 111 2XM12X80 30 1.9
745-52-0129-11107 127,5 - 130,0 129,0 37.3 14 151 183 59 15 111 2XM12X80 30 2.0
745-52-0133-11107 131,6 - 134,0 131,7 37.3 14 153 185 59 15 111 2XM12X80 30 2.0
745-52-0139-11107 137,7 - 140,0 139,7 37.3 14 161 193 59 15 111 2XM12X80 30 2.0
745-52-0141-11107 139,7 - 142,0 141,3 37.3 14 163 195 59 15 111 2XM12X80 30 2.0
745-52-0154-11107 151,5 - 155,0 154,0 32 12 176 208 59 15 111 2XM12X80 30 2.1
745-52-0159-11107 156,5 - 160,0 157,7 32 12 179 211 59 15 111 2XM12X80 30 2.2
745-52-0165-11107 163,3 - 166,0 165,2 32 12 187 219 59 15 111 2XM12X80 30 2.2
745-52-0168-11107 166,6 - 170,0 168,3 32 12 190 222 59 15 111 2XM12X80 30 2.3
745-52-0180-11107 178,0 - 182,0 180,0 26.7 10 202 234 59 15 111 2XM12X80 30 2.4
745-52-0216-11107 214,5 - 218,0 216,3 21.3 8 242 281 89 15 150 2XM14X100 60 4.6
745-52-0219-11107 217,0 - 221,0 219,1 21.3 8 245 284 89 15 150 2XM14X100 60 4.7
745-52-0267-11107 264,8 - 270,0 267,4 21.3 8 293 332 89 15 150 2XM14X100 60 5.2
745-52-0273-11107 270,4 - 275,0 273,0 21.3 8 299 338 89 15 150 2XM14X100 60 5.3
745-52-0318-11107 316,0 - 322,0 318,5 18.7 7 345 383 89 15 150 2XM14X100 60 5.9
Enquiry
Scroll for more info

Components

1. Body Stainless steel AISI 316L
2. Side plate Stainless steel AISI 316L
3. Bolt Stainless steel A4, PTFE coated
4. Nut Stainless steel AISI 316L
5. Washer Stainless steel AISI 316L
6. Grip segment Stainless steel AISI 301H
7. Sealing EPDM rubber
8. Support ring Stainless steel AISI 301H

Test/Approvals

  • BV
  • DNV
  • DVGW
  • RINA |

    Material approvals:

  • EN 681-1
  • EG (UBA)
  • W270 (DVGW)
  • BS 6920 (WRAS)
  • XP P 41-250 (ACS)
