AVK Repico® - Grip Plast coupling (GP)

Tensile / axial restraint, for all plastic pipes, stainless steel 316L, EPDM

Industrial Netherlands building

Contact

AVK Industrial Nederland BV

Schorsweg 1 8171 ME Vaassen Netherlands

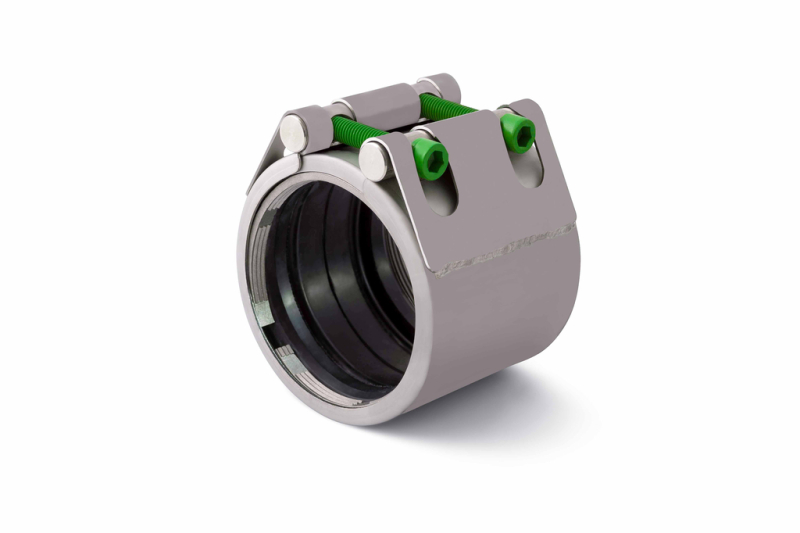

Repico® GP - Grip Plast type coupling (tensile / axial restraint) to connect all plastic pipes.For water and neutral liquids -30°C up to +110° C

AVK's Repico® product program consists of stainless steel pipe couplings and repair couplings for pipe diameters from DN15-2000. The Repico® range offers a quick and simple connection solution for all pipes with possibility of angular deflection and easy handling due to the compact and light weight design.

fire
fire
Variant 745/11-111
Material: Stainless steel
DN: DN32 - DN200

Features

  • Grip Plast type coupling provides a tensile / axial restraint connection for all plastic pipes, allows pipe section replacement, suitable for high pressure, and is available in DN32-200
  • Couplings < DN50 with spot welding and from DN50 seam welding
  • Easy installation by use of a torque wrench, limited space required for installation due to compact design
  • Specially designed flat rows of grips engages into the pipe surface without damaging the plastic material
  • Pressure range up to 16 bar (232 PSI) depending on size
  • Progressive sealing and anchoring
  • Max. angular deflection 5° for DN32-50, 4° for DN65-175 and 2° for DN200 and larger
  • Main components of stainless steel 316L
  • Light weight, appr. 30% in comparison with flanged connections
  • Dampens water hammer, vibrations and structure-borne noise
  • On request also available with FKM or Silicone sealing; please contact our sales department
  • Note: For use in plastic pipes we recommend the use of a stainless steel insert (see mounting instructions of Repico® accessories)

Downloads

Datasheet
Installation
Product Brochure

Reference nos. and dimensions:

Scroll for more info
AVK ref. no. DN
mm
Tolerance
mm
Pipe diam.
mm
Work press.
bar
D
mm
H12
mm
L10
mm
L11
mm
L12
mm
Bolt Size
(Metric)
Theoretical
weight/kg
745-11-0040-11111 32 39,5 - 41,5 40,0 16 53 77 28 8 60 2XM8X55 0.4
745-11-0050-11111 50 49,5 - 51,5 50,0 16 64 88 28 8 60 2XM8X55 0.4
745-11-0063-11111 50 62,4 - 63,6 63,0 16 79 101 44 8 80 2XM8X55 0.7
745-11-0075-11111 65 74,0 - 76,2 75,0 16 92 114 44 8 80 2XM8X55 0.8
745-11-0090-11111 80 87,8 - 91,0 90,0 16 109 137 59 15 110 2XM12X70 1.4
745-11-0110-11111 100 108,5 - 110,5 110,0 16 128 156 59 15 110 2XM12X70 1.6
745-11-0160-11111 150 157,5 - 161,0 160,0 16 179 211 59 15 111 2XM12X80 2.3
745-11-0200-11111 200 198,2 - 201,5 200,0 16 226 265 89 15 150 2XM14X100 4.6
Enquiry
Scroll for more info

Components

1. Body Stainless steel AISI 316L
2. Side plate Stainless steel AISI 316L
3. Bolt Stainless steel A4, PTFE coated
4. Nut Stainless steel AISI 316L
5. Washer Stainless steel AISI 316L
6. Grip segment Stainless steel AISI 316L
7. Sealing EPDM rubber
8. Support ring TPU

Test/Approvals

  • Material approvals:

  • EN 681-1
  • EG (UBA)
  • W270 (DVGW)
  • BS 6920 (WRAS)
  • XP P 41-250 (ACS)
  • 21CFR 177.2600 (FDA)
0 Files In the package
