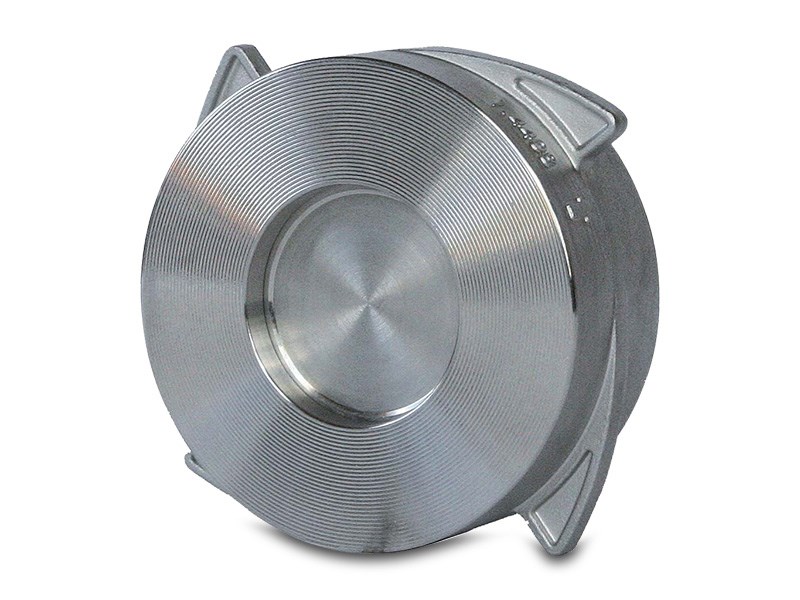

Disc Check Valve, DCV
Disco check valve, for mounting directly between flanges. Depending on your application, the body, disc and seat material are determined to withstand specific working conditions from -10°C to 400°C.
Disco check valves are suitable for liquids and gases in the industrial range as well as in systems where much higher demands are made on the material. Not suitable for media with solid components.
| Variant 175/X-000 |
|---|
Features
-
Max. working pressure 40 bar (stainless steel)
-
Rating PN 6 to 40 other ratings on request
-
Face to face dimension DIN EN 558-1, series 49
-
Temperature range up to 300°C according to materials
-
Flange DIN EN 1092-1 B1 / ASME B16.5
-
The disco check valves 930 meet the safety requirements of the pressure Equipments Directive 2014/68/EU (PED) appendix 1 for fluids of the groups 1 and 2.
